Specifications
| Protocole(s) | |
|---|---|
| BACNET/IP | Yes |
| ENOCEAN | Via USB adaptator |
| KNX/IP | Yes |
| MODBUS/RTU | Yes |
| MODBUS/TCP | Yes |
| ZIGBEE | Via USB adaptator |
| Z-WAVE | Via USB adaptator |
| General information | |
|---|---|
| Brand | OSHEMS |

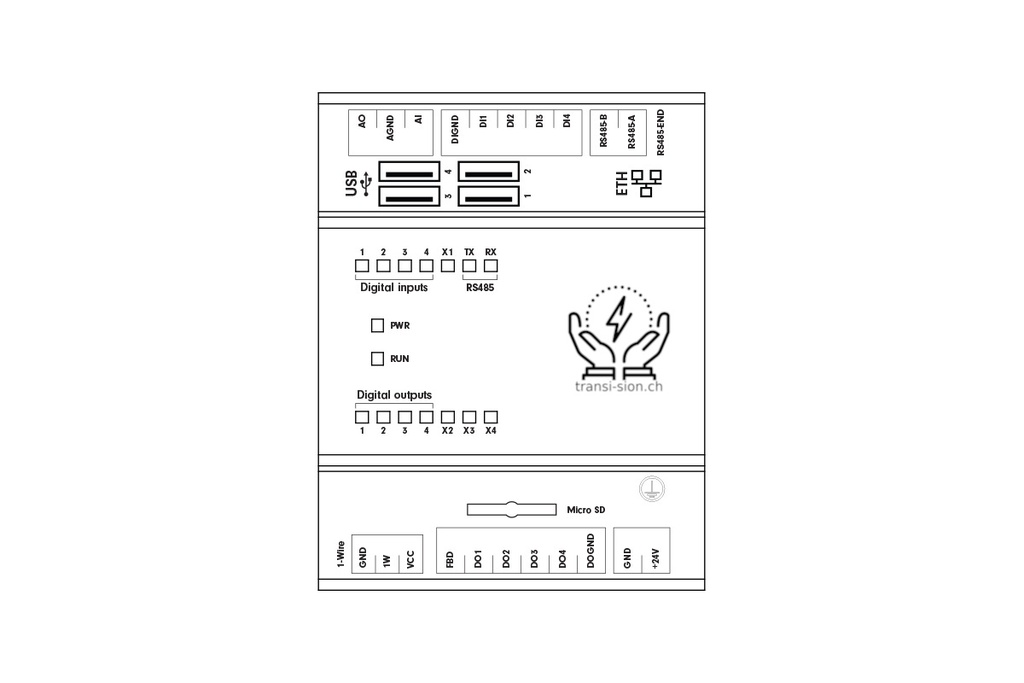

| Model | OSHEMS V1a |

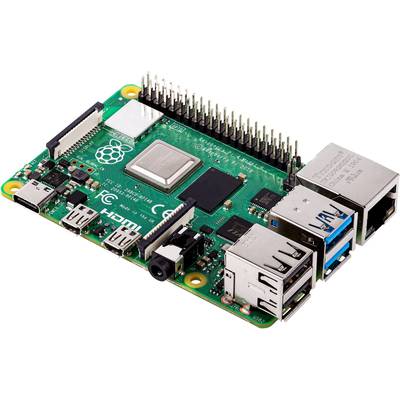

| Raspberry Pi | 4 |
| Technical data | |
|---|---|
| Dimensions | 70 × 90 × 60 mm |
| Format | Rail DIN (4 modules) |
| Inputs/Outputs | |
|---|---|
| Digital input(s) | 4 |
| Analog input(s) | 1 (0-10V, 0-20mA, 4-20mA) |
| Digital output(s) | 4 |
| Analog output(s) | 1 (0-10V, 0-20mA, 4-20mA) |
| Relay output(s) | 0 |
| Interface(s) | |
|---|---|
| Ethernet | 1xRJ45 (10/100/1000 Mbit/s) |
| RS-485 | 1 |
| USB | 4 |
| Compatible with | |
|---|---|
| ENPHASE | V4 |
| OPENSTUDER | 1.0.0 |
| SUNSPEC | 1.9 |
